Thread tape for water and gas pipe threads.

PTFE tape (also called Teflon tape, plumber's tape or thread-seal tape) goes on tapered pipe threads, the kind that seal on the thread itself. White is for water and general plumbing. Yellow is gas line tape for gas pipe threads.

Does my joint need tape?

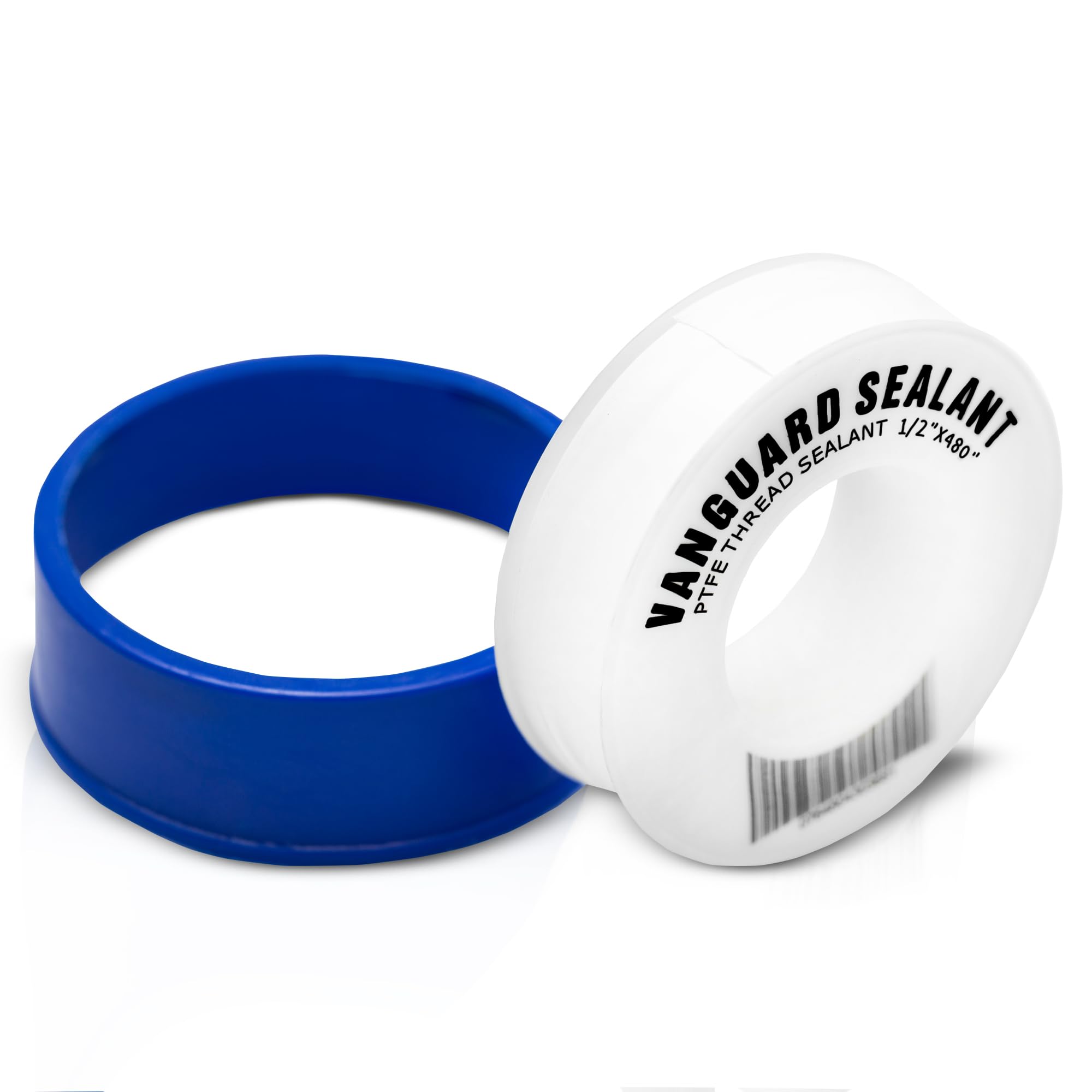

Vanguard Sealants white PTFE thread-seal tape roll beside its blue cap

WhiteWater and plumbing

1/2 in x 460 inBuy on Amazon

Not for joints that seal on a rubber washer or a flared seat.

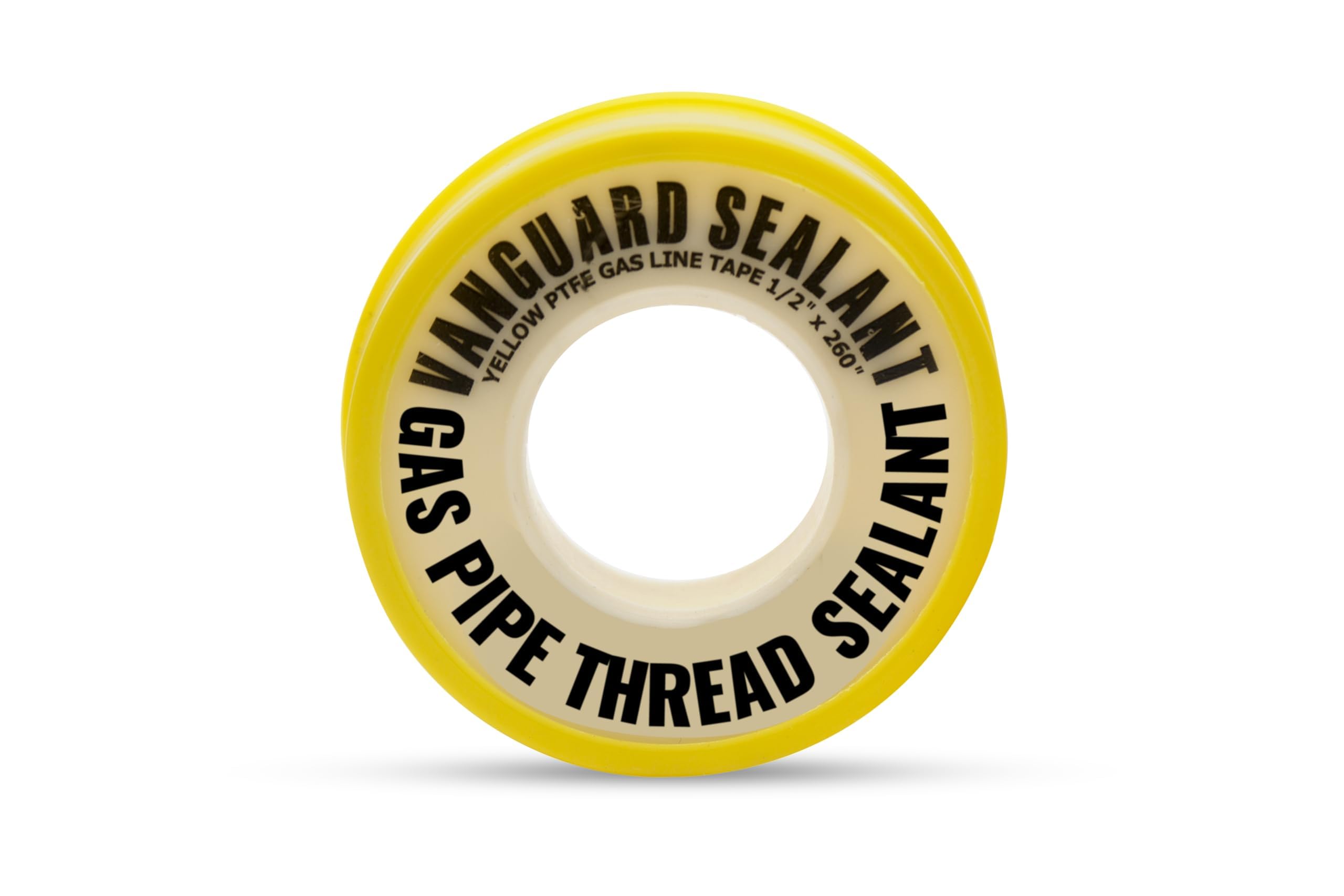

Vanguard Sealants yellow PTFE gas line tape roll

YellowGas and propane

1/2 in x 260 inBuy on Amazon

Smell gas? Leave the building, then call your gas company or 911 from outside.

Does this joint need thread tape?

Only if the threads make the seal. Tapered pipe threads seal on the thread, so tape fills the gaps. Many fittings seal somewhere else: on a rubber washer, a compression ring or a flared seat. On those, the threads only pull the parts together, and tape can stop the seal from seating. Find the sealing surface first.

Find your joint in the left column. Read across the row. Which tape

Threaded water pipe

Seals here: the threads

Pipe and fittings that screw straight into each other: threaded pipe, elbows, plugs and most shower arms. The threads make the seal, and the tape fills the gaps between them.

Threaded water pipeAs you see it
A water pipe screwed into a fitting, cut in half. White tape lies between the two threads.Cut openClose up
Use white tapeBuy on Amazon

Threaded gas pipe

Seals here: the threads

The same kind of thread on a natural gas or propane line: steel pipe, elbows, tees and the pipe side of a gas valve. Yellow is the tape sold for gas. Follow the fitting maker's instructions and your local code.

Threaded gas pipeAs you see it
A gas pipe screwed into a fitting, cut in half. Yellow tape lies between the two threads.Cut openClose up
Use yellow tapeBuy on Amazon

A nut with a rubber washer inside

Seals here: the washer

Garden hoses, handheld shower hoses and the flexible hoses under a sink. Look inside the nut. If you see a rubber ring, that ring makes the seal. Tape on the threads adds nothing and can stop the nut from seating.

A nut with a rubber washer insideAs you see it
A hose nut on a tap, cut in half. A black rubber washer is pressed between the two parts. The threads are bare.Cut openClose up
No tape

A nut that presses metal on metal

Seals here: the metal faces

The flexible gas hose behind a range or dryer, and valves that clamp onto a bare tube. A shaped metal end or ring is pressed onto a matching seat. Tape there can hold the two apart.

A nut that presses metal on metalAs you see it
A flare fitting cut in half. The flared end of a copper tube is pressed onto a brass cone. The threads are bare.Cut openClose up
No tape

The dashed outline marks where the seal forms. The circle shows that spot close up. In the first two rows the white or yellow layer is the tape, filling the gaps between the threads. The tape is drawn thicker than it is, so you can see it.

Where white tape goes, and where it does not

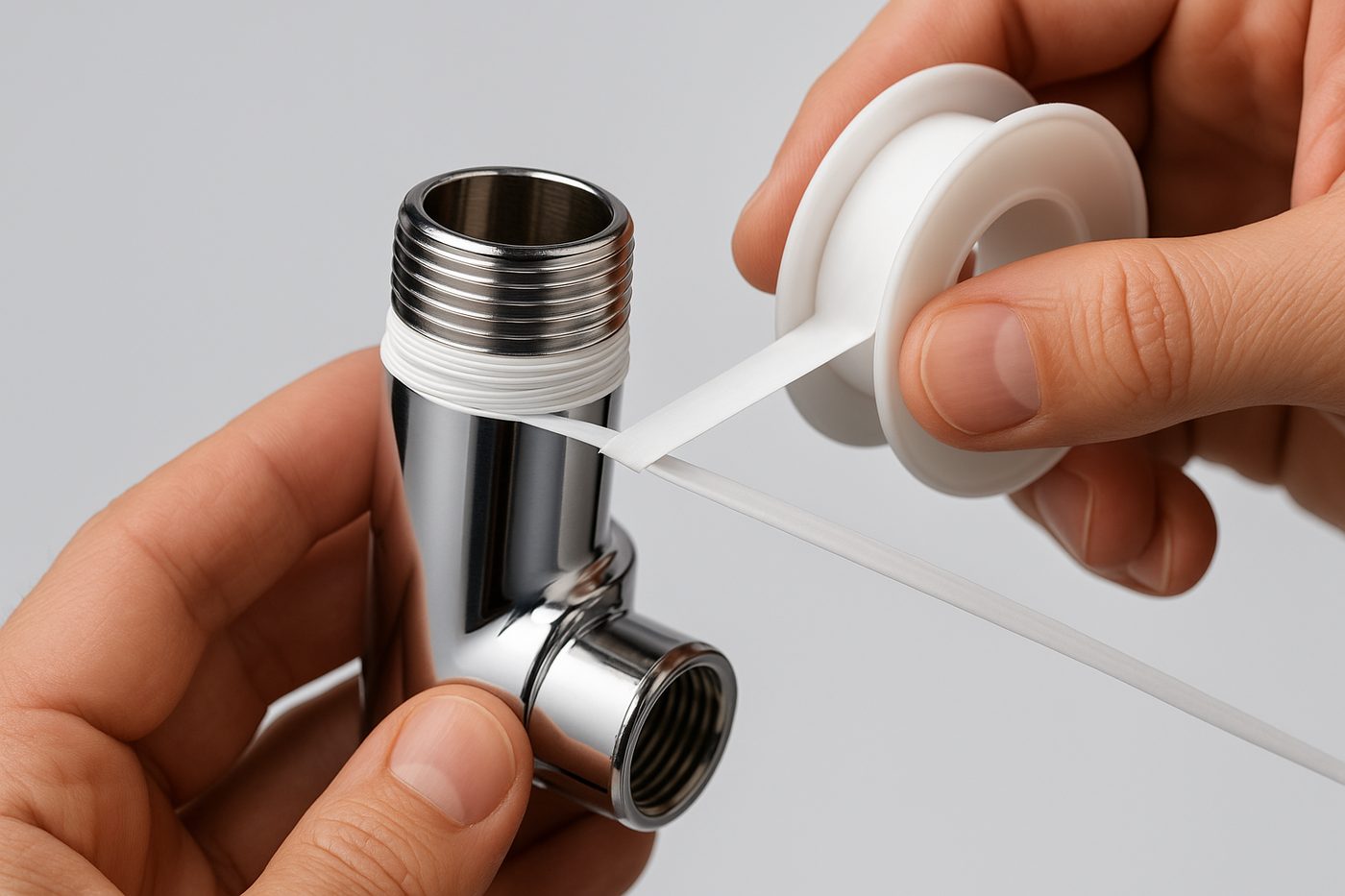

White tape goes on water pipe threads that seal on the thread. It stays off joints that seal on a rubber washer. Three places around the house show the difference.

PlaceUse white tapeNo tape
At the showerAt the shower: Use white tapeThe shower arm, where it screws into the wallThe arm is the bent pipe that holds the shower head. Its pipe thread seals in the fitting behind the wall. At the shower head end, follow the head's instructions.At the shower: No tapeThe hose of a handheld showerA rubber washer inside each nut makes the seal.
At the outdoor tapAt the outdoor tap: Use white tapeThe tap, where it screws onto the pipeA tap with a threaded inlet seals on that pipe thread.At the outdoor tap: No tapeThe garden hose, where it screws onto the tapA rubber washer inside the hose end makes the seal.
Under the sinkUnder the sink: Use white tapeThe shut-off valve, where it screws onto a threaded pipeTrue for valves with a threaded inlet (the box says FIP). Other valves clamp onto a bare tube and take no tape.Under the sink: No tapeThe hose from the valve up to the faucet (supply line)Rubber washers or gaskets built into its nuts make the seal.

Not for joints that seal on a rubber washer or a flared seat.

Buy on AmazonWhite PTFE Thread-Seal Tape, 1/2 in x 460 in

Where yellow tape goes, and where it does not

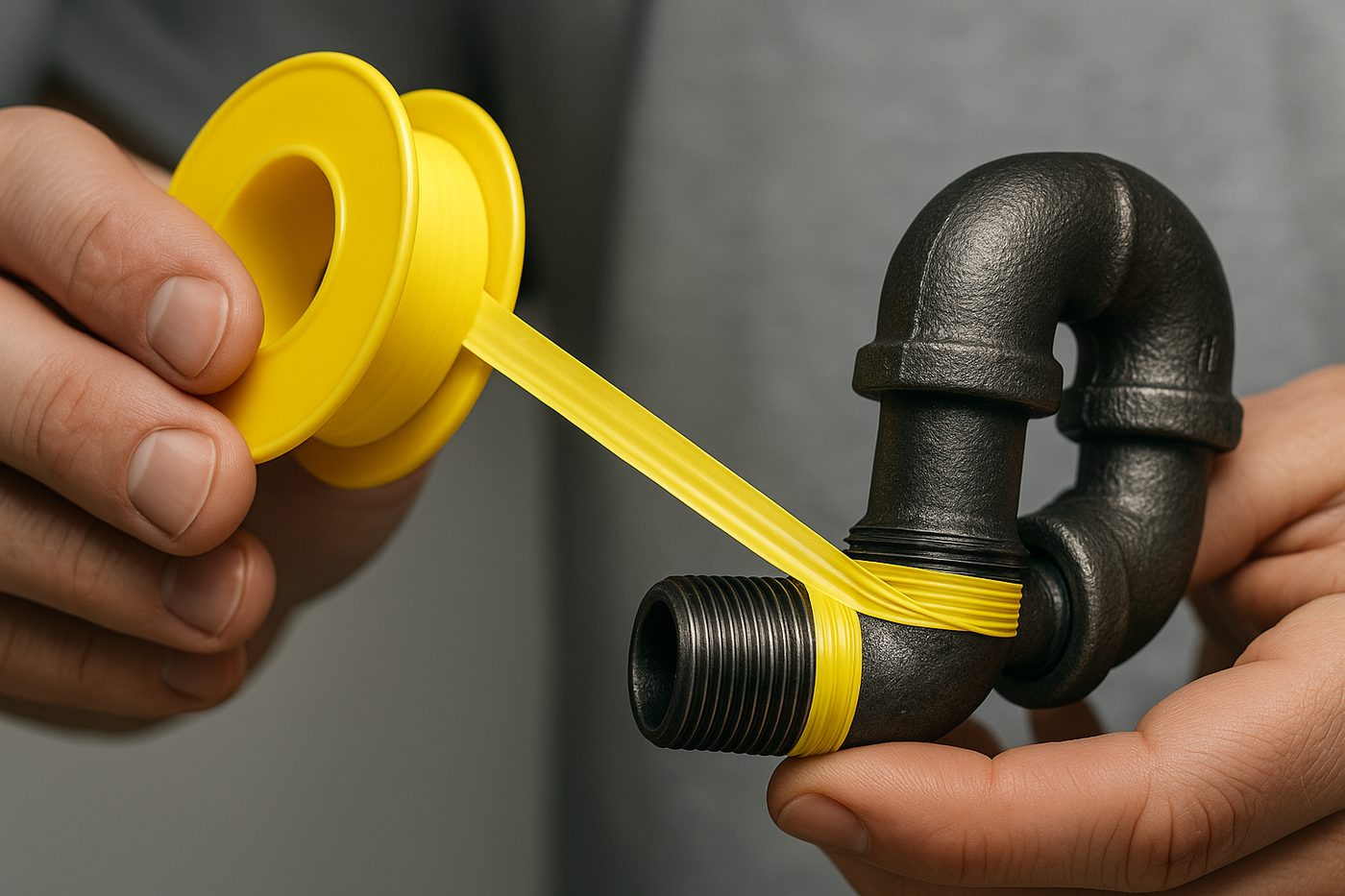

Yellow tape goes on threaded gas pipe. It stays off flare ends and other gas connections that seal on a seat. Three places show the difference.

PlaceUse yellow tapeNo tape
At the gas shut-off valveAt the gas shut-off valve: Use yellow tapeThe valve, where it screws onto the gas pipeThe pipe thread makes the seal and needs a sealant rated for gas. Follow the valve's instructions.At the gas shut-off valve: No tapeThe flexible hose to the appliance (gas connector)Its flared ends seal metal on metal. No tape or paste on a flare end.
Where two pipes join with a unionWhere two pipes join with a union: Use yellow tapeThe pipes, where they screw into the two halvesThose are pipe threads, and they need a sealant rated for gas.Where two pipes join with a union: No tapeThe big nut in the middle (the union nut)The two halves seal where their faces meet. The nut only pulls them together.
At a propane cylinderAt a propane cylinder: Use yellow tapeThreaded steel pipe joints on the propane linePipe threads need a sealant made for propane. Follow the equipment's instructions: some call for paste, not tape.At a propane cylinder: No tapeThe connector that screws onto the cylinderIt seals on its own seat or rubber seal, not on the threads.

Smell gas? Leave the building, then call your gas company or 911 from outside.

Buy on AmazonYellow PTFE Gas Line Tape, 1/2 in x 260 in

Which Vanguard tape do I need?

White for water and general plumbing threads. Yellow for gas pipe threads. Whether a gas joint takes tape at all is set by the fitting maker and your local code, and gas work is best done by a qualified installer.

White PTFE Thread-Seal TapeWater and plumbingYellow PTFE Gas Line TapeGas and propane
ForWater and general plumbing pipe threads: shower arms, threaded pipe and fittings that seal on the thread.Natural gas and propane pipe threads.
Not forJoints that seal on a rubber washer or a flared seat.Flare fittings or connectors that seal on a seat.
Roll length460 in260 in
Width1/2 in1/2 in
MaterialPTFEPTFE
Buy on Amazon

Smell gas? Leave the building, then call your gas company or 911 from outside.

Buy on Amazon

What do plumber's tape colors mean?

The colors are a trade convention. White is sold for water and general use, yellow for gas, gray for stainless steel, and pink for water lines where a thicker tape is wanted. A color tells you what a tape is sold for. It is not a rating.

ColorSold forNotes
WhiteWater and general plumbing threadsOurs is 1/2 in x 460 in.
YellowNatural gas and propane pipe threadsOurs is 1/2 in x 260 in. Not on flare fittings.
GrayStainless steel threadsWe don't sell it.
PinkWater lines, thicker tapeWe don't sell it.

The tape's own package and the fitting maker's instructions decide whether a tape suits a joint.

Quick answers before you wrap

Does every threaded joint need tape?

No. Thread tape belongs on tapered pipe threads, which seal on the thread itself. Joints that seal on a rubber washer, a compression ring or a flared seat are not taped: tape there can keep the seal from seating. When in doubt, follow the fitting maker's instructions.

What's the difference between white and yellow plumber's tape?

White plumber's tape is sold for water and general plumbing threads. Yellow is the color used for gas line tape, sold for natural gas and propane pipe threads. The color shows what a tape is sold for. Whether a joint takes tape at all depends on the fitting.

What tape do I use for a gas line?

Use yellow gas line tape on gas pipe threads. Flare fittings, common on flexible gas appliance connectors, seal on the flare and take no tape. Gas work is covered by local code and is best done by a qualified installer. If you smell gas, leave the building and call your gas company or 911 from outside.

Do I need tape on a shower head?

Often, but check the instructions that came with the shower head. Many makers tell you to wrap the threads on the shower arm with white PTFE tape. Some heads seal on a rubber washer and say not to use tape. The hose on a handheld shower usually seals on washers, so its nuts are not taped.

Which way do I wrap thread tape?

Wrap in the direction the fitting tightens: clockwise when you look at the open end of the pipe. That way tightening smooths the tape into the threads instead of peeling it back. Start one thread back from the end of the pipe. How many wraps depends on the thread and the tape, so follow the fitting maker's instructions.

Is plumber's tape the same as Teflon tape?

Yes. PTFE tape, Teflon tape, plumber's tape and thread-seal tape are names for the same kind of tape. Teflon is a brand name for PTFE, the material the tape is made of.

Pick the tape for the line.

The current price, ratings and delivery date are on each Amazon listing.

White Water and plumbing 1/2 in x 460 in Buy on Amazon

Yellow Gas and propane 1/2 in x 260 in Buy on Amazon
